Combined friction stir welding and machining processes, scalable manufacturing system for microtechnology, high-productivity twin-spindle machining – three new product innovations by the CHIRON Group, focusing on productivity, efficiency and sustainability.

High dynamics plus high stability plus large working chamber plus twin-spindle concept with a spindle distance of up to 1,200 mm: The 22, 25 and 28 Series from the CHIRON Group are primed to set a new benchmark in terms of productivity and precision in this size – and are demonstrably doing so already. As an example in practice, a DZ 25 P that has been in use for two years is setting a new benchmark in manufacturing structural components for the automotive industry. All in all, this turnkey solution has provided, according to the customer: „A stable and high-precision process with greatly increased output in comparison to the previous system."

In addition to other double-spindle applications such as battery and e-motor housing manufacturing, these new series are also fully capable of massive machining applications starting with solid blocks. The extremely stable portal design forms the basis for high precision, while well thought-out working area and user ergonomics enable flexible integration of a wide range of automation solutions for ideal productivity and process reliability.

Sustainable machining of prototypes and series – with the scalable manufacturing system

The CHIRON Group is offering a groundbreaking manufacturing system for the microtechnology sector, for high-precision automated machining of workpieces with maximum dimensions of 50 x 50 x 50 mm. It is based on the Micro5 from the FACTORY5 brand – a high-speed milling center with the power consumption of a coffee machine and the size of a refrigerator. As a stand-alone solution, it is ideal for manufacturing smaller batch sizes in the medical technology sector, in the watchmaking and jewelery industry and in precision engineering applications. Thanks to its six-pallet capacity, the Micro5 also supports production with minimal personnel.

The combination of a Micro5 with a Feed5 handling system will form an ideal plug-and-play solution once it enters series production. Feed5 offers increased autonomy for automated workpiece handling with a six-axis robot. Capacities for Micro5 and Feed5 projects are currently being expanded further.

Combining FSW and machining – new innovation for sustainable mobility

One process that may not be particularly well known is Friction Stir Welding (FSW), a reliable, efficient, and sustainable manufacturing technology for creating pressure-tight and media-tight connections between two materials. FSW is fundamentally suitable for applications involving joining aluminum or unrelated materials. The target workpieces for FSW currently include, in particular, battery trays and inverter housings as well as all electronic components that require heat dissipation alongside high requirements for leak-tightness. Friction stir welding technology also enables car manufacturers to relocate electrical modules to the wet areas of vehicles.

The CHIRON Group boasts comprehensive expertise and practical user experience for machining these target workpieces. By combining FSW and machining, the CHIRON Group is developing a forward-thinking innovation to provide benefits for users similar to those offered by other process combinations: Reduced space requirements, shorter cycle times and higher quality and productivity. The first projects using this combination are already underway at a technology partner company, resulting in the first turnkey machining centers such as the MILL 2000 machining center, offering combined FSW and milling technology.

Double-spindle machining on a DZ 25 P – greatly increased productivity in series production of structural components.
Double-spindle machining on a DZ 25 P – greatly increased productivity in series production of structural components.
Double-spindle machining on a DZ 25 P – greatly increased productivity in series production of structural components.
Double-spindle machining on a DZ 25 P – greatly increased productivity in series production of structural components.

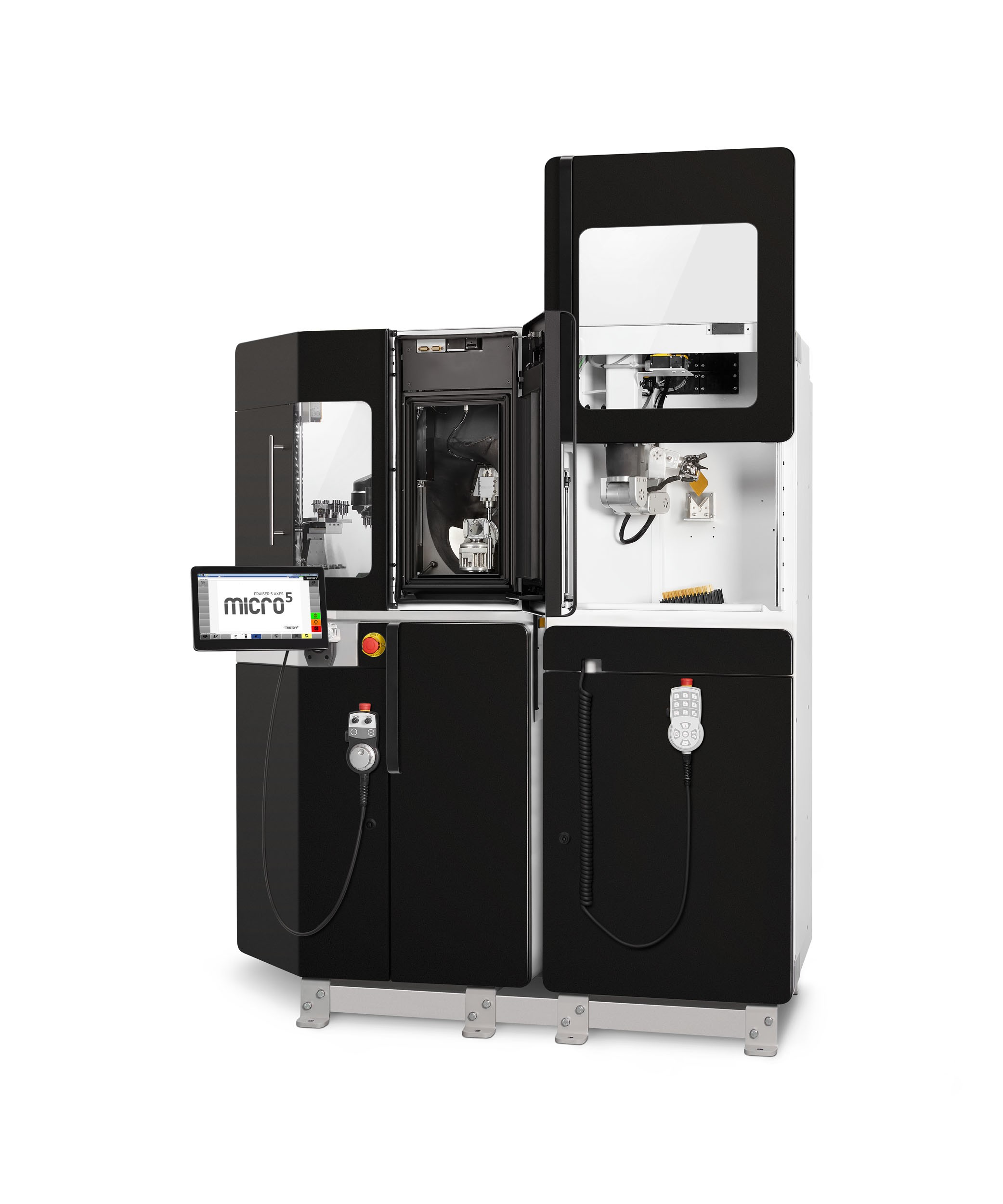

For high-precision and sustainable manufacturing in microtechnology – a scalable manufacturing system for prototypes, pre-series and large-scale production: Micro5 and Feed5.
For high-precision and sustainable manufacturing in microtechnology – a scalable manufacturing system for prototypes, pre-series and large-scale production: Micro5 and Feed5.

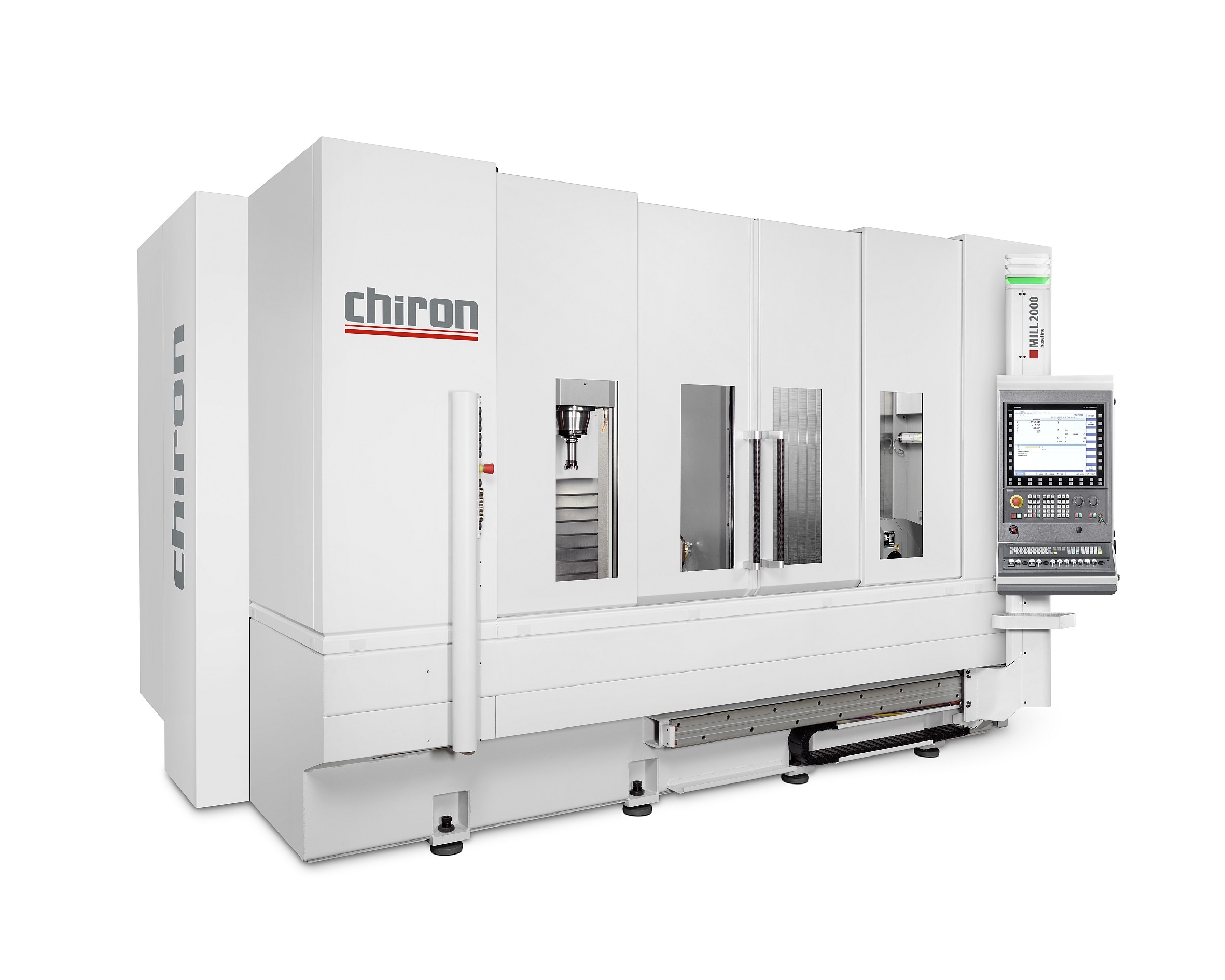

Workpiece milling, friction stir welding and completion. FSW and milling combined in the MILL 2000. A new innovation for efficient manufacturing of
Workpiece milling, friction stir welding and completion. FSW and milling combined in the MILL 2000. A new innovation for efficient manufacturing of "green" workpiece components.
